Description:
E-9795

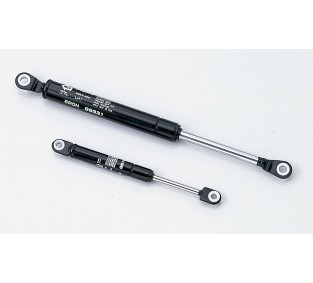

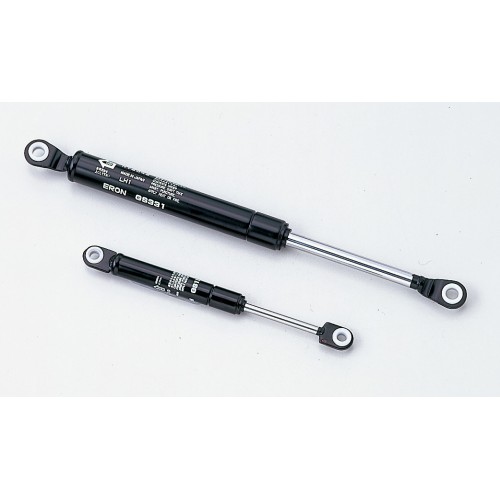

Gas Spring
| |
Material |
Surface Finish |
| Cylinder |
STKM12BEC |
|
| Rod |
S35C |
Matte Black |
| Bush |
Polyacetal Resin(white) |
Gas Nitro Carburizing Treatment |
| Gas |
Nitrogen Gas(N2) |
|
Features
* Light and small one, but it has higher spring (reation) force.
* Spring (reaction)force can be kept for long stroke.
*Can be used for various fields, and designed being suitable for each purposes.
What is Gas spring?
High pressure gas (Nitrogen gas, not flammable) is being enclosed inside cylinder,
and take this as reaction force. This gas spring itself is smaller one, but give us lower rate of spring with heavy initial loads. It can be used for various kind of machinery, as
well as furniture, automobiles, OA instruments etc.
E-9795
Gas Spring (Free angle Type)
| |
Material |
Surface Finish |
| Cylinder |
STKM12BEC |
|
| Rod |
S35C |
Matte Black |
| Bush |
Polyacetal Resin(white) |
Gas Nitro Carburizing Treatment |
| Gas |
Nitrogen Gas(N2) |
|
Features
*Light and small one, but it has higher spring (reaction) force.
*Spring (reaction) force can be kept for long strokes.
*Can be used for various fields, and designed being suitable for each purposes.
*Can be fixed at any angles (360 degrees)
